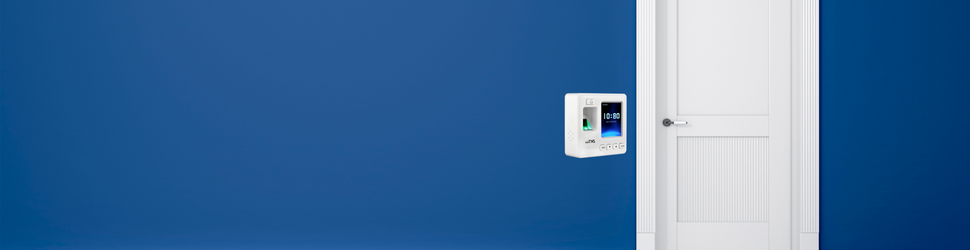

sf100 IP Based Fingerprint Access Control


The SF100 is an IP based fingerprint terminal works both in network and standalone modes. In network mode, it can connect with ZKAccess3.5 software for access control and time attendance management.

Wiegand output makes SF100 flexible to connect with ZK or any 3rd party controllers as a slave reader. Additionally wiegand input allows two units of SF100 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the security.

Auxiliary input interface allows SF100 to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.

  • Fingerprint Capacity 1,500
  • Card Capacity (Optional) 5,000 (EM/Mifare)
  • Records Capacity 80,000
  • Communication TCP/IP, RS485, USB Host
  • Fingerprint Sensor ZK Optical Sensor (500DPI)
  • Access Control Interface Electric lock, Door sensor, Alarm, Exit button, Doorbell
  • 2.4-inch color display with graphical UI for easy operation
  • Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
  • Prompt audio acceptance or rejection signals for valid or invalid fingers
  • Compact and lightweight, Dimension(W x L x H) 90 x 90 x 34.5mm
  • TCP/IP or RS485 communication for various networking environments
  • Supports USB flash drive for offline data management
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
  • Up to 15 multi-verification methods to enhance security level
  • Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
  • Duress Alarm offers effective protection against duress by threats
  • Tamper proof switch and multiple alarm outputs
  • Multi-languages display available on request
