Empower Your Home with Clean Power: A Complete Guide to 9.6KW Solar Systems
Introduction to Solar Energy
As the demand for sustainable power grows, solar energy has emerged as one of the most reliable and eco-friendly sources of electricity. By adopting solar systems, homeowners not only reduce their dependence on grid power but also achieve significant cost savings over time. This guide explores a 9.6KW solar system proposal, showcasing its components, performance, cost-effectiveness, and long-term benefits, particularly for rooftop solar applications.
Why Choose Solar Energy?
Clean, Renewable, and Efficient
Solar energy is a naturally replenished power source that captures sunlight through solar panels to generate electricity. It’s widely accessible, emission-free, and perfect for both residential and commercial usage.
Long-Term Economic Benefits
With traditional energy prices steadily rising, installing solar systems is a wise investment. It reduces monthly utility bills, offers insulation from rate hikes, and adds long-term value to properties.

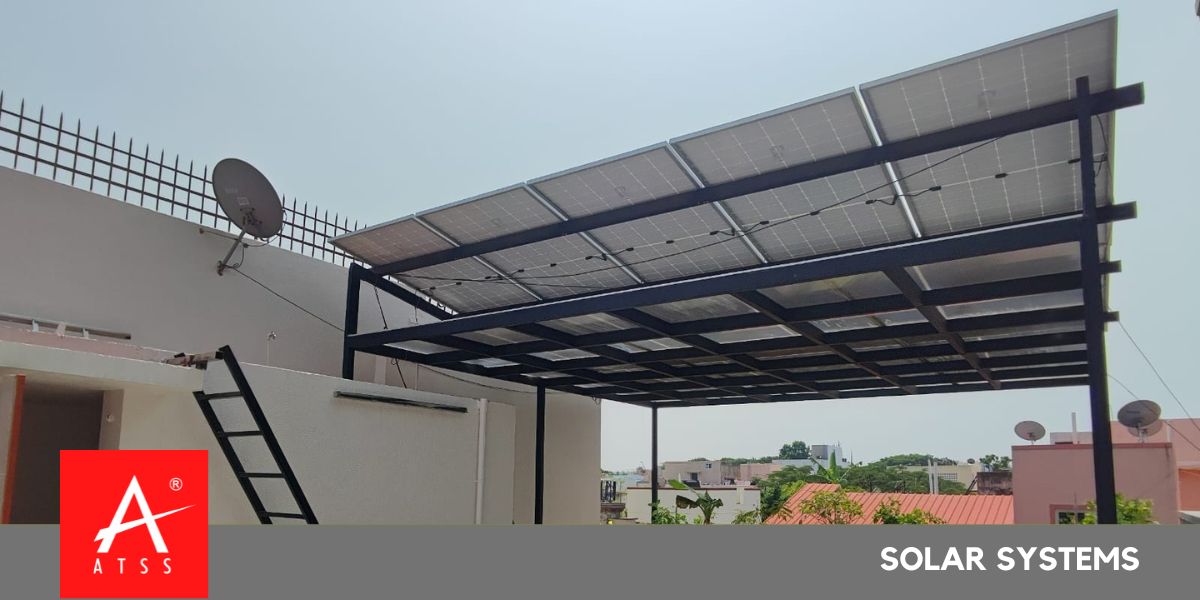

Solar Systems – Project Overview: 9.6KW Rooftop Solar System
This proposal outlines the design and installation of a 9.6KW rooftop solar system. It is a comprehensive package covering premium solar panels, inverters, mounting, cabling, protection systems, and professional installation.
Key Features
- System Size: 9.6 KW
- Quotation Amount: ₹7,00,000 (All inclusive)
- Installation Time: 2–3 weeks post-order
- System Life: 25+ years
- Payback Period: 4–5 years
Solar Systems – Components and Specifications
A high-performance solar system is only as reliable as its components. Here’s a breakdown of what’s included in this 9.6KW rooftop solar solution:
| Component | Specification | Quantity |
|---|---|---|
| Solar Inverter (Growatt) | 10KW / Three Phase | 1 Unit |
| Solar Panels | 600W each | 16 Panels |
| Elevated Mounting Structure | GI frame for rooftop support | 9.6KW |
| Array Junction Box (AJB) | 1 In / 1 Out | 1 Unit |
| AC Distribution Box (AC DB) | 1 In / 1 Out | 1 Unit |
| MCB 32A with Enclosure (4 Pole) | Safety switch | 1 Unit |
| MC4 Connectors | Standard connectors | 10 Units |
| PVC Channels (Truf-45×45 mm) | Cable organization | 2 Units |
| DC Cables (6 sqmm) | Solar-grade wiring | 100 Meters |
| Copper Earthing Cable (6 sqmm) | Safety grounding | 100 Meters |
| Earthing Manholes | Inspection units | 4 Pieces |
| Earthing Rods & Accessories | 2m Rods for grounding | 2 Meters |
| Pipe Conduit & Accessories | For safe electrical routing | 1 Unit |
| Aluminum Armoured Cable (10 sqmm) | Heavy-duty connection | 15 Meters |
| Lightning Arrestor | Surge protection system | 1 Unit |
| Copper Cable for LA (50 sqmm) | Earthing for LA | 50 Meters |
| Installation & Labor Charges | Professional service | 9.6KW |
Rooftop Solar Installation Requirements
Shadow-Free Zone
To maximize efficiency, the solar panels must be installed in a shadow-free zone with direct sunlight from 9 a.m. to 3 p.m.
- Recommended Direction: South-facing
- Mounting Angle: Optimized based on roof pitch and latitude
Space Requirement
A 9.6KW rooftop solar system typically requires 60 to 80 square meters (around 650 to 860 sq. ft.) of clear rooftop area. This space ensures optimal panel layout and airflow.
Solar Systems – Generation Potential
Expected Performance
- Monthly Output: 1000 – 1150 units
- Bimonthly Output: 2000 – 2300 units
- Annual Output: ~13,800 units
Savings Breakdown
- Current Grid Tariff: ₹11.55/unit
- Bimonthly Savings: ~₹24,832
- Annual Savings: ~₹1,49,000
- Total Investment: ₹7,00,000
- Estimated Lifetime Savings: Over ₹20 Lakhs
Solar Systems – Cost and Solar Panel Price Analysis
The solar panel price is a significant part of the total system cost. In this 9.6KW system, high-efficiency 600W solar panels have been selected for maximum output and durability. While the initial investment appears substantial, when considering the 25-year lifespan and savings potential, the per-unit solar panel price offers excellent value.
ROI Highlights
- Payback Period: 4 to 5 years
- ROI: Approx. 21.29% per annum
This makes it one of the smartest financial and environmental decisions for a homeowner.
What is Net Metering?
Net metering allows surplus solar energy generated during the day to be fed back into the power grid. This is recorded via a bi-directional meter, providing credits that offset nighttime or cloudy day usage.
TNEB Net Metering
- Eligible Systems: Up to 10KW (no CEIG approval needed)
- Meter Type: Bi-directional net meter
- Benefit: Export more than you import and reduce your bill to zero
Solar Systems – Full-Service Solar System Package
When you invest in this 9.6KW rooftop solar system, you’re not just buying equipment—you’re securing an end-to-end solution:
- Free Site Assessment – Evaluate space, shading, and load profile
- Custom Design – Tailored to your roof and consumption
- Premium Equipment – Branded solar panels, inverter, and protection gear
- Skilled Installation – Handled by certified professionals
- TNEB Liaisoning – Net metering application and approval
- Ongoing Support – Maintenance and troubleshooting
Why Trust Our Expertise?
With years of experience in delivering solar energy and automation solutions, we ensure:
- Trusted Brands – Only top-rated solar panels and components
- Timely Execution – Average completion time of 2–3 weeks
- Competitive Solar Panel Price – Without compromising quality
- Local TNEB Support – Smooth net metering process
- Customer Satisfaction – End-to-end project management
Environmental Contribution of Solar Systems
Choosing solar systems contributes to global sustainability by significantly cutting down carbon emissions.
Green Benefits
- CO2 Offset: ~12 tons/year
- Equivalent to:
- Planting 600 trees annually
- Offsetting 2 petrol vehicles’ emissions
By investing in solar energy, you’re actively participating in building a cleaner, greener future.
Solar Systems – Payment Terms and Financing Options
We aim to make adopting solar systems affordable and flexible:
- Payment Plan:
- 80% advance at order
- 20% after installation
Additional financing options may be available through partner banks and NBFCs, helping you get started with zero down payment or EMI schemes.
Warranty and Support
- Solar Panels: 25-year performance warranty
- Inverter: 5 years manufacturer warranty
- Installation Workmanship: 1 year support
- Customer Service: Phone, email & on-site support available
Conclusion: Make the Smart Switch to Solar Energy
The 9.6KW rooftop solar system is more than just an investment—it’s a long-term solution for clean power, reduced bills, and energy independence. With optimized solar panel price, best-in-class components, and full-service support, there has never been a better time to go solar.
Whether you’re exploring solar systems for your home or planning a clean energy transition, this proposal offers everything you need—performance, durability, support, and substantial savings.
